901-3050-CN00 Overview

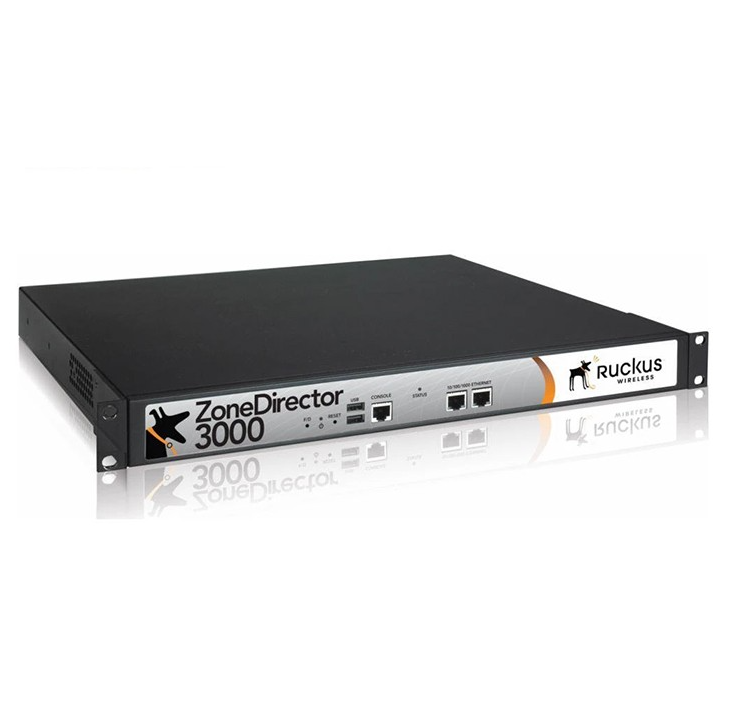

Ruckus 901-3050-CN00 is the Ruckus Zonedirector 3000 Smart Wlan Controller Supporting Up To 50 APs. The Ruckus Wireless ZoneDirector 3000 is the first enterprise-class Smart Wireless LAN system that delivers a secure, robust and easily expandable WLAN solution at an unmatched total cost of ownership.
Quick Spec
Table 1 shows the quick spec.
|
Model |
901-3050-CN00 |
|
Number of APs supported |
Up to 50 |
|
Ethernet ports |
2 Ethernet ports |
|
Wireless Security |
DoS, AAA, ACL, IEEE 802.1X, Password guessing protection |
Product Details
Ruckus ZoneDirector 3000 wireless controller provides these benefits:
Unmatched scalability
Supporting up to 500 APs and 32 WLANs per device, the ZoneDirector 3000 can easily serve the largest campus deployments
IT lite deployment in 5 minutes, simple to use and manage
Web-based configuration wizard configures an entire WLAN in minutes. ZoneFlex APs auto-discover the ZoneDirector. Centralized management and automatic, real-time optimization of entire WLAN
Advanced WLAN features and functions
Advanced wireless networking features include rogue AP detection, intererence detection, band steering, airtime fairness, role-based user policies, rate-limiting, hotspot and guest networking services
Smart Mesh Networking streamlines costly and complex deployment
Integrated Ruckus Smart Mesh Networking technology automates deployment, eliminates the need to run Ethernet cable to every Smart Wi-Fi access point. Adaptable architecture with Hybrid Mesh extends the wireless network through Ethernet-connected APs, increasing system performance through better spatial reuse
Automatic user security
Dynamic PSK eliminates the requirement to configure and update individual PC client devices with unique encryption keys. Dynamic VLAN assignment seamlessly extends existing security policies to the WLAN
Easy monitoring and troubleshooting
Customizable dashboard provides comprehensive at-a-glance network snapshot and allows drill down to troubleshoot wireless problems
Distributed forwarding architecture
Maximizes data throughput by sending all data traffic directly from the access points to the wired network
Flexible deployment options
The ZoneDirector interacts with existing network and security infrastructure and provides dynamic RF management across APs to eliminate AP placement issues
Complete integration
Combines network management, dynamic RF management, location management and AP control within a low-cost solution
Compare to Similar Items
Table 2 shows the comparison.
|
Model |
901-3050-CN00 |
|
|
Series |
ZoneDirector 1200 |
ZoneDirector 3000 |
|
Number of APs supported |
Up to 150 |
Up to 50 |
|
Ethernet ports |
2 Ethernet ports |
2 Ethernet ports |
|
Authentication support |
802.1X, Local database, Active Directory, RADIUS, LDAP |
DoS, AAA, ACL, IEEE 802.1X, Password guessing protection |
Get More Information
Do you have any question about the 901-3050-CN00?
Contact us now via Live Chat or info@falcon-atlantic.net
901-3050-CN00 Specification
901-3050-CN00 Specification |
|
|
Number of APs supported |
Up to 50 |
|
Power |
220 watt internal power supply 100–250V AC Universal, IEC 320 connector |
|
Physical size |
35.52cm(L), 43.18cm(W), 4.39cm(H) |
|
Ethernet ports |
2 ports, auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45 |
|
Led display |
Power/Status |
|
Environmental conditions |
Operating Temperature: 41°F (5°C)–104°F (40°C) Operating humidity: 15%–95% non-condensing |
|
Configuration |
Web user interface, CLI, FlexMaster |
|
Statistics |
LAN, wireless and associated stations (available via UI) |
|
Auto ap software updates |
Supported |
|
Captive portal |
Supported |
|
Guest accounts |
Supported |
|
VLAN support |
802.1Q (per BSSID), dynamic VLAN |
|
DHCP server |
Supported |
|
Ap discovery & control |
Layer-2 or Layer-3 |
|
Wlans (BSSIDS) |
Up to 32 |
|
Radius accounting |
Supported |
|
Access lists (ACLS) |
Layer-2 (MAC address based ACL) Layer-3 (IP address based ACL) L2 client isolation |
|
Wireless intrusion detection (WIDS) |
Rogue AP detection DoS attack prevention Password guessing protection Rate limiting |
|
Wireless security |
WEP, WPA-TKIP, WPA2-AES, 802.11i |
|
Authentication |
802.1X, local database External AAA servers: ActiveDirectory, RADIUS, LDAP |
|
Local authentication |
10,000 user entries |
|
VoIP tunneling |
Supported |
|
802.11e |
Supported |
|
Software queues |
Per traffic type, per client |
|
Auto-classification |
Heuristics |
|
Rate limiting |
Supported |
|
Managed aps |
Up to 500 |
|
Concurrent stations |
Up to 10,000 |
